Special Heel and Body Contour For Extra Comfort !
Neck-thu design for improved sustain and playability

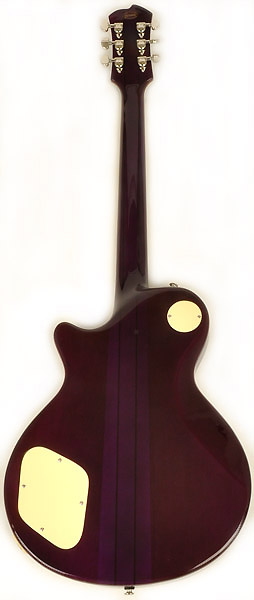

Body and neck contour for extra comfort and access to higher frets.
Graph Tech NVS2 bridge with string saver saddles!

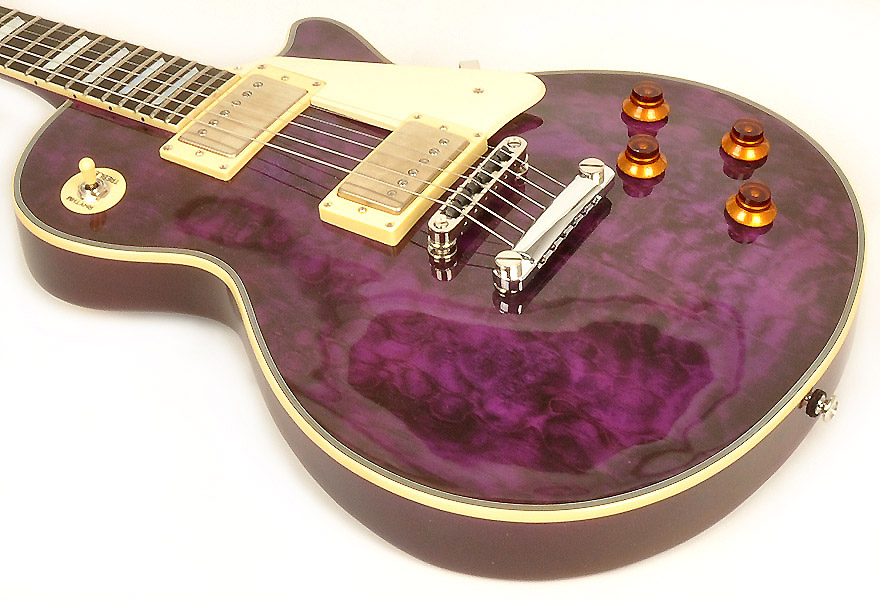

<Two Type V Alnico humbucker pickups for warm, traditional sound
Solid mahogany arch top body
Improved Nickel plate hardware, including Nickel die-cast Grover tuners with 18-1 turning ratio for ultra fine tuning (Model 102-18N)
High voltage pots with brass shafts for reduced noise
Improved sealed pickup selector switch
Two volume and two tone controls, plus a three way pickup selector switch
5 piece neck-thru (maple/walnut)neck with 13.7" (350mm) radius neck for fast play and adjustable truss rod

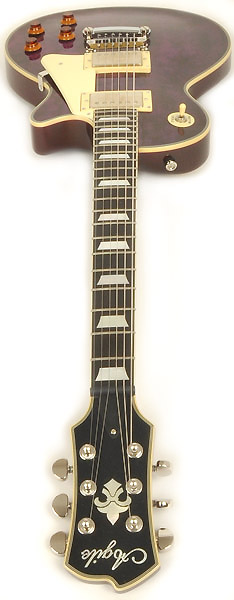

Ebony fretboard with 22 Jumbo frets and trap mother of pearl inlays.
The AL-3200 features D'addario strings installed at the factory and a professionally cut Graph Tec nut
Individually hand filed frets for professional feel and playability
Measurements
Overall length: 40"
Scale length: 24 3/4"
Width of the neck at the nut: 1 11/16" (42.8mm);
Width of the neck at the 21st fret: 2 3/16" (56mm)
String spacing at the nut: 1/4" (7.5mm)
String spacing at the bridge: 3/8" (10mm)
Overall string spacing at the nut: 36mm
Overall string spacing at the bridge: 52.5mm Neck taper/thickness at the 1st fret: 3/4" (19.5 mm)
Neck taper/thickness at the 12th fret: 7/8" (21.5 mm)
Width at the upper bout: 9 1/4"
Width at the lower bout: 13 5/16"
Body thickness at the edge: 1 15/16"
Weight: only 10 lbs!
Wiring Diagram
|
