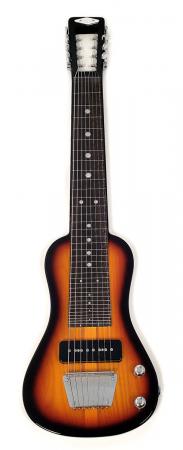

Expand Your Lap Steel Playing with Eight Strings! The SX Lap 8 Ash 3TS Sunburst is a full-size 8-string electric lap steel guitar that combines traditional steel guitar tone, expanded tuning possibilities, and attractive solid wood construction at an affordable price.
Featuring an American swamp ash body, rosewood fretboard with 36 marked playing positions, 24 3/4" scale, and P90-style single-coil pickup, the SX Lap 8 is an excellent choice for musicians exploring country, Western swing, Hawaiian music, blues, and rock.
Compared with a conventional 6-string lap steel, the additional two strings offer more options for extended chords, richer harmonies, and complex tuning arrangements. A removable lap steel stand and padded carrying bag are included.
One of the biggest advantages of an 8-string lap steel is the additional musical flexibility provided by two extra strings.
Traditional 6-string lap steels are excellent for blues, rock, and straightforward open tunings. An 8-string instrument gives players more notes within reach of the tone bar, opening possibilities for extended chords, richer harmonies, and more sophisticated arrangements.
For musicians exploring traditional Western swing and Hawaiian steel guitar, eight strings can be particularly useful for C6, A6, E9, and related tuning systems.
Additional strings can also reduce the need for certain bar slants by making more chord tones available across adjacent strings.
The SX Lap 8 uses a steel tone bar or slide to change pitch rather than pressing the strings against conventional raised frets.
Moving the bar along the strings creates smooth pitch transitions, expressive vibrato, and singing sustain, making lap steel distinctive in country, Hawaiian music, Western swing, blues, and rock.
The 36 marked fretboard positions provide visual references for accurate bar placement and intonation.

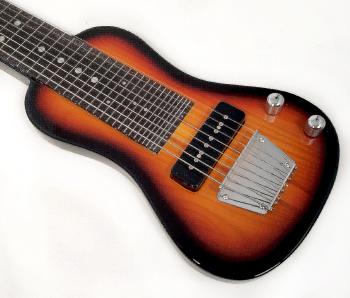

The SX Lap 8 is equipped with a P90-style single-coil pickup measuring approximately 8K ohms resistance.
It delivers clear, bright, expressive electric steel guitar tones suitable for warm country melodies, smooth Hawaiian-style playing, rich Western swing chords, and blues or rock sounds with additional amplifier overdrive.
Separate volume and tone controls allow convenient adjustment of output and brightness.

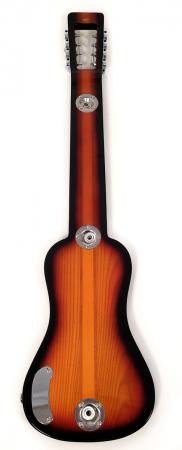

The solid American swamp ash body provides a sturdy platform for lap steel performance and an attractive traditional appearance.

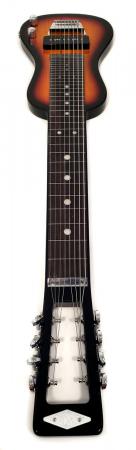

The rosewood fretboard features 36 marked playing positions along a 24 3/4" scale. These positions serve as visual guides for the tone bar rather than conventional raised frets.
The longer scale and wider neck accommodate the eight-string configuration while retaining familiar lap steel playing techniques.
The SX Lap 8 features 1/4" spacing between strings at the nut and 3/8" spacing at the bridge.
This gives players comfortable room for fingerpicking, chord techniques, and accurate steel bar placement across all eight strings.
The SX Lap 8 Ash 3TS features a traditional Three-Tone Sunburst finish, creating an attractive vintage-inspired appearance.
Combined with the American swamp ash body and rosewood fretboard, the finish gives this instrument classic steel guitar styling.
A removable lap steel stand is included, providing an alternative to resting the instrument directly across your lap.
The stand offers flexibility for practice and performance and allows the instrument to be supported while playing seated or standing.
The included padded carrying bag offers convenient protection for transporting and storing the instrument.
Together with the removable stand, it makes the SX Lap 8 an attractive complete package for players seeking an affordable 8-string electric lap steel.
The SX Lap 8 is factory shipped in E9 tuning:
Low to High: G#2 B2 D3 E3 F#3 G#3 B3 E4
Eight-string lap steels offer many alternative tuning possibilities. Several popular examples are listed below, with notes shown from highest to lowest for easy comparison with traditional lap steel tuning charts:
Alternative tunings may require changes in string gauges to achieve appropriate string tension. Always select strings suitable for the desired tuning and scale length.
For players interested in maintaining, repairing, or modifying their instrument, the original factory wiring information is available here:
Click Here to View the SX Lap 8 Wiring Diagram
Watch a lap steel arrangement of the classic song "Can't Help Falling in Love."
Many thanks,
Lawrence G. The Poconos, PA
Greetings Kurt!
I just opened my SX lap steel with pickup and I have to tell you. I could not be any
happier! What a wonderful deal, The sound is just
what I was after and the feel of it is Great.
Not to mention it looks sexy as hell. Even my wife
thought so. I know people like to write to companies
and bitch about this and that so I thought that you
would like to get an email from a true Rondo SX fan.
This is the 2nd instrument that I bought from you guys
and with the exception of some minor tuner issues on the
1st one I am totally pleased. I'm on a very tight budget
and it is so nice to find equipment of this quality for
such a great price. You guys rock! I would like to buy
the stand for the steel as soon as it is available. So
keep up the great deals and many thanks, Peace,
Kenn Lynn
Just received my SX lap steel. Let me start off by saying I have quite a collection of guitars including some high end non-pedal steels and laps.
My expectations were not very high for the price I paid, but I bought this from many recommendations on the Steel Guitar Forum.
The case alone is worth the price of admission. The guitar- is an above average instrument!
What a little gem!! I initially bought this as a beater, but I will be playing gigs with it!
Thanks again!
Steve Secord
I have one of your SX lap steels and an Agile 3000, great stuff!
Below is a link to a song I did.
Also, if anyone needs any instruction, I created a whole page of 6 string lap tabs with sound files so you can hear
what they should sound like:
Tab Instruction
Feel free to point any of your customers to my site for free instruction or just to see what a lap steel can do. Ive get a lot of hits from the telecaster and Stratocaster forums for regular guitar pickers looking to get started on lap steel.
Greg Cutshaw
Hello Kurt,
Last year I ordered an AL-3010 gold top and an ash/P90 lap steel, and really love both instruments. I recently finished a
2 DVD set
on C6 lap steel using the SX lap steel for all the audio and video, and just wanted to send you a link to the video. I've been thrilled with the tone of the instrument, and it seems that others dig it too so far! Please feel free to repost the video if you like:
Thanks for making SX guitars available. I dig!
best regards,
joe dochtermann
Q: How do you tune it?
A: Eight String Tunings
Lap Steel is shipped with E9 Tuning (G#2, B2, D3, E3, F#3, G#3, B3, E4
Additional strings on your guitar means even greater tuning potential. With the additional strings, you can minimize the number of slants you have to play to get your guitar to match the song's harmonies. Here are some suggested tunings for eight-string steel guitars. A6 Tuning: 1. E 2. C# 3. A 4.F# 5.E 6. C# 7.A 8.F#
This is a very popular tuning, used by Herb Remington among others.
C6/Am7 Tuning: 1.G 2.E 3.C 4.A 5.G 6.E 7.C 8.A E13 Tuning: (as used by Leon McAuliffe) 1.E 2.C# 3.B 4.G# 5.F# 6.D 7.G# 8.E C6/FMaj9 Tuning: 1. E 2. C 3. A 4.F 5.E 6. C 7.A 8.F C13 Tuning: (as used by Junior Brown) 1.G 2.E 3.C 4.A 5.G 6.E 7.C 8.Bb Seven String C Diatonic Tuning (as used by Jerry Byrd): 1.E 2.C 3.B 4.A 5.G 6.F 7.E Expanded E7 Tuning: 1.E 2.B 3.G# 4.E 5.D 6.B 7. G# 8.E Bob Lee's New Hawaiian Tuning: 1.E 2.D 3.C# 4.A 5.F# 6.D 7.B 8.A MDFried's E6 tuning: 1.E 2.C# 3.B 4.G# 5.E 6.C# 7.B 8.E Bob Lee's E6 tuning: 1.G# 2.E 3.C# 4.B 5.G# 6.E 7.D 8.B Andrew Waegel's A major/minor 7th tuning: 1.G 2.E 3.C 4.A 5.G 6.E 7.C# 8.A Andrew says, "It's basically the Jerry Byrd C6/A7 tuning with an added high G on the top string to make more third intervals accessible without too much neck motion. It also gives more options for those high sweet tones that I hear so much of in the older country music that I like to play." Bobby Black's C6/A7 tuning: 1.E 2.C 3.A 4.G 5.E 6.C# 7.A 8.B According to Cartwright Thompson, "I got this one from Bobby Black, he said he got it from Joaquin Murphey. The cool thing here is that the bottom B string is tuned an octave higher (1/2 step below the second string). So you have the Jerry Byrd C6/A7 on the top 7, but you can grab the bottom string for a very pretty major 7th, and you get a nice "strummable" A9th chord on the bottom 5 strings." Bob Quasar's D13 tuning: 1.E 2.F# 3.D 4.B 5.A 6.F# 7.D 8.C The top E is tuned between the third string (D) and the second string (F#). This allows a four-note pattern to be played by picking alternately on the C# D E F# strings. This would be very useful in certain situations. Michael McClellan's G13 tuning: 1.G 2.E 3.C 4.A 5.F 6.D 7.B 8.G Michael McClellan writes: John Coltrane got me into it! This does wild things to "Sand" (the Hawaiian instrumental), "Misty" (Errol Gardner's classic), some polkas, and many country beer-drinkers. I pull a string behind the steel with my left hand ring finger, and can get some of the pedal-steel effects while still keeping the Dobroฎ purity. Using this trick, I can make a weird part of tlhe 13th into a normal major chord. The G13 gives me inversions of a 7th, a 9th, a 6th, a Major 7th, an 11th, and a minor. It gives a real 13th, from root to treble, which the other 13ths don't. When you end a song on this chord, folks sit up and listen! Pete Grant's D tuning: 1.F# 2.E 3.D 4.A 5.F# 6.D 7.A 8.D
