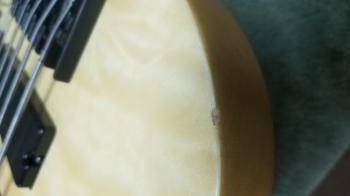

This B Stock Item has a 1" crack in the finish on the bass side of neck pocket. Neck is stable. Included hard shell case is like new.
Dual cutaway, contoured, solid alder body
Headstock matches body
Highly figured maple quilted top
String-through bridge design for maximum attack and sustain
Active pickups with active/passive pull tap, bass, treble, balance, and volume controls
Separate battery compartment makes it easy to change batteries quickly
Bolt on maple neck with adjustable double truss rod and 6-bolts for incredible stability
Position markers on side of neck
Rosewood fretboard
All black die-cast hardware creates an stunning look
Measurements
Overall length, not including the strap button: 44 1/2"
Scale length: 34"
Width at widest point: 12 3/4"
Width of the neck at the nut: 2 1/8"
Width at the 24th fret: 3 1/4"
Thickness of the neck at the first fret 7/8"
Pickup dimensions: 1 3/8" x 4 3/8"
String gauges: .029, .045, 065, .085, .105, .128
String spacing at the bridge: 16 mm
Weight: only 8 1/2 lbs
HXB Wiring Diagram
|
