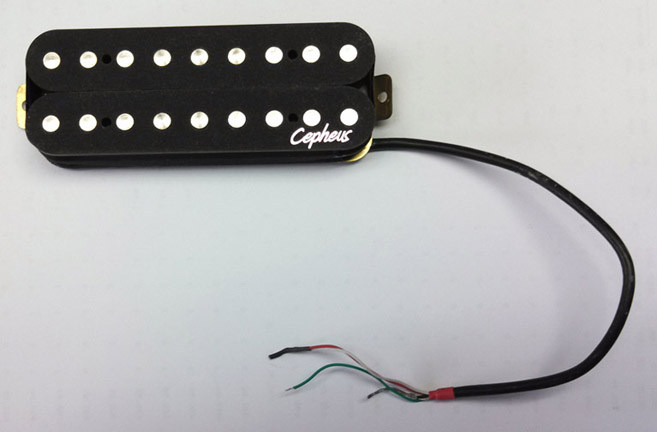

The Cephius Alpha Pickup, as used in the Agile Intrepid and Interceptor 9 Standard Guitars - now available separately by customer request!
Passive electronics
Impedance: 12.15K ohms
4 Wires for coil tapping:
Black - ground
Red and white - coil split
Green - hot output
To coil split, connect the red and white wires to switch system, otherwise connect together
Dimensions: 3 3/8" x 1 13/16"
Requires soldering
|
