A Harm Vintage Toaster Style Pickups!
Cepheus bridge with graphite saddles.

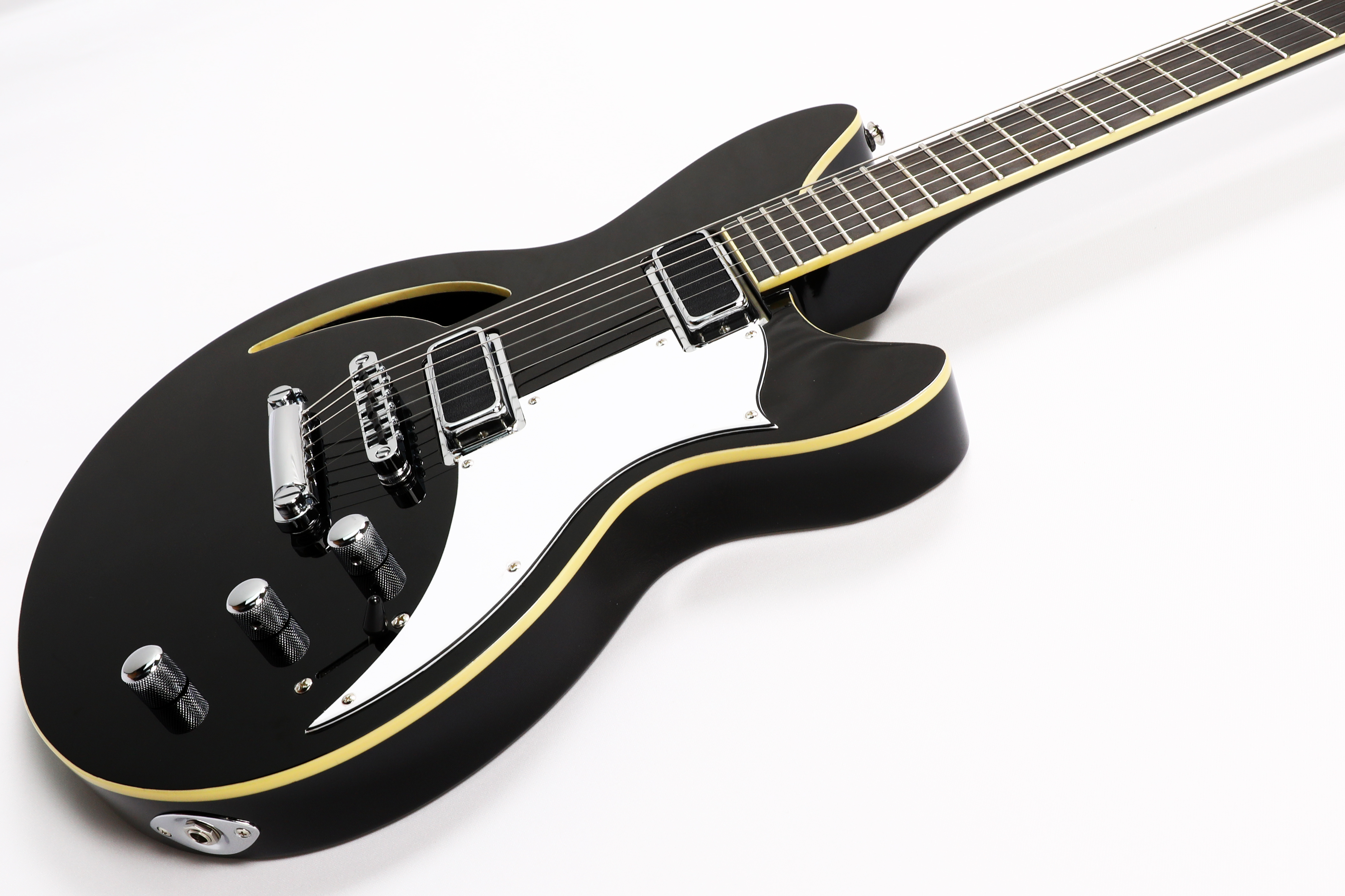

Semi-hollow Mahogany body with Maple Top and single crescent-shaped opening
22 fret Maple set neck with Ebony fret-board
Toaster style humbucker pickups give the guitar a vintage twang!
Jumbo 2.7mm frets and a 13.7" (350mm) radius neck for "fast" play
Die-cast Grover tuners with 18-1 ratio for ultra fine tuning
Vintage Cream colored binding on top, neck and headstock
Two volume & one tone controls and a 3-way pickup selector switch help you find your sound
Stop-Bar tailpiece transfers string vibration to the body of the guitar and produces superior sustain
Width of the neck at the nut: 1 5/8"; at the 22st fret: 2 3/16"
Thickness of neck at the first fret approx 11/16"
Overall length, including the strap button: 39.5"; Scale length: 24.7"
Width at the widest point: 13.25"
Body thickness 1.75" at edge
Lightweight! Actual Weight is only 8 lbs
Harm Wiring Diagram
|
