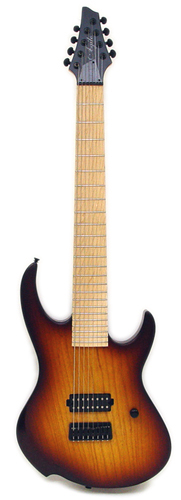

The Long Awaited Agile 8 String!
Ash Body
3 piece maple bolt on neck with 15” radius. Width 2 ¼” at the nut
No inlays on the neck. Position markers on the side of the neck only
Scale Length: 28.625” 24 Jumbo Frets
Cepheus "Alpha" passive pickup with master volume. Cavity has been routed large enough to accommodate additional electronics
Cepheus "Bridge 8" Bridge
String through body
Die-cast Grover sealed tuners model GH305-18 with 18-1 ratio for fine tuning
Graphite Nut
Polyurethane Finish
Neck profile (thickness): 7/8" at the nut and 15/16" at the 12th fret
String gauges: .009, .012, .015, .022, .030, .040, .054, .072
Intrepid Wiring Diagram
|
