Sound Chambers and P90 Pickups for that Classic Rock Sound!

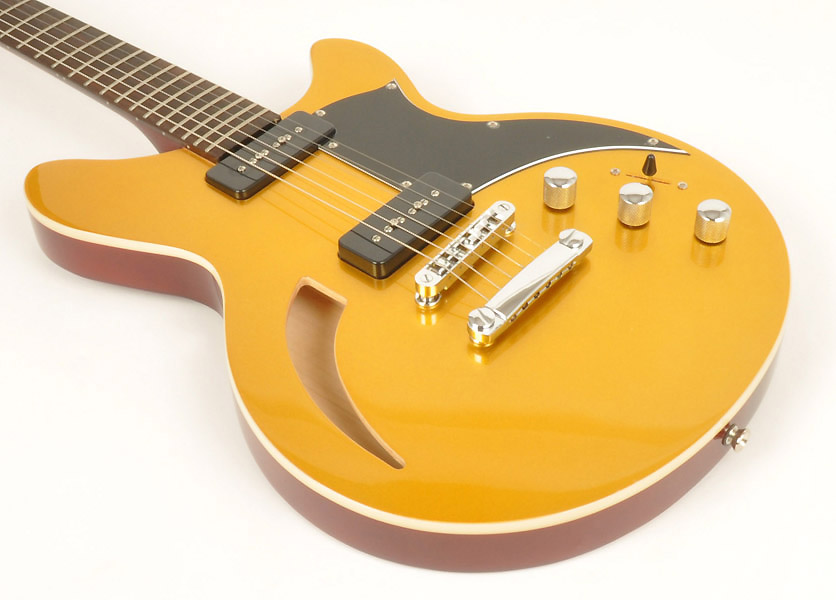

Semi-hollow Mahogany body with Maple Top and single crescent-shaped sound chamber opening
22 fret Maple set neck with rosewood fret-board
Position markers are only on the side of the neck, not on the fretboard
Jumbo 2.7mm frets and a 13.7" (350mm) radius neck for "fast" play
Two black covered soap bar style P-90 pickups
Die-cast chrome tuners with 12-1 ratio
Two volume & one tone controls and a 3-way pickup selector switch help you find your sound
Stop-Bar tailpiece transfers string vibration to the body of the guitar and produces superior sustain
Width of the neck at the nut: 1 5/8"; at the 22st fret: 2 3/16"
Thickness of neck at the first fret approx 11/16"
Overall length, including the strap button: 39.5"; Scale length: 24.7"
Width at the widest point: 13.25"
Body thickness 1.75" at edge
Lightweight! Actual Weight is only 7 lbs
Wiring Diagram
|
