Short Scale Version of the HXB 6 String!
Advanced Order: Target ship date is December 16. Actual ship date may vary.
A slim line, dual cutaway, contoured solid alder body with matching headstock
Short scale neck (30") for easy playability
Highly figured Canadian maple quilt top
String-through bridge design for maximum attack and sustain
Active pickups with active/passive pull tap, bass, treble, balance, and volume controls
Separate battery compartment lets you change batteries quickly
Bolt on maple neck with adjustable truss rod and 6-bolts for incredible stability
Rosewood fretboard with 24 jumbo frets and position markers
All black die-cast hardware creates an incredible look
Overall length, not including strap button: 42"
Scale length: 30"
Width of body at the lower bout: 12 5/8"
Width of the neck at the nut: 2 1/8"
Width of the neck at the 24th fret marker: 3 1/4"
Thickness of body at the strap button: 1 3/4"
Neck profile (thickness) at the nut: 13/16"
Neck profile at the 12th fret: 15/16"
Pickups: 4 3/8" x 1 3/8"
String spacing at the bridge: 16 mm
String gauges: .029, .045, 065, .085, .105, .128
Weight: only 8 1/2 pounds

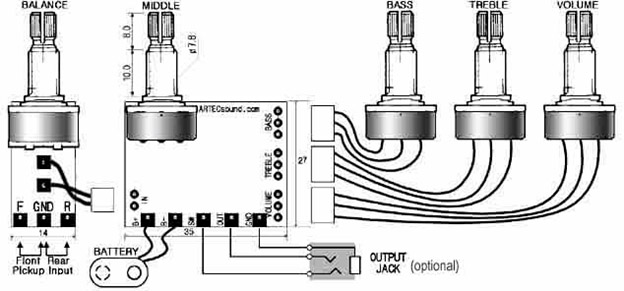

HXB Wiring Diagram
