Intrepid Pro 30" Scale Left Handed Guitar!

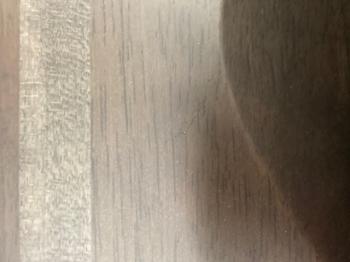

This B stock item has a 1/2" scratch on the back of the body near the belly contour.
Mahogany body with maple fretboard and dot inlays
5 piece maple/walnut neck-through body design
Headstock matches body
Maple neck with 15” radius
24 jumbo frets
EMG 81/85 Pickups
Cepheus extended range high mass bridge
String through body
Die-cast Grover sealed tuners model GH305-18 with 18-1 ratio for fine tuning
Graphite nut
Satin polyurethane finish
Measurements
Overall Length: 43 3/4"
Body Width: Lower Bout: 13 1/2" Upper Bout: 11 3/4"
Scale length: 30”
Pickup dimensions: 2 5/8" x 1 3/8"
Width of the neck at the nut: 1 5/8" at the 12th fret: 2"
Thickness of the neck at the nut: 3/4" at the 12th fret: 1"
String spacing at the nut:1/4" (1 3/8" overall)
String spacing at the bridge: 3/8" (2 1/16" overall)
Neck profile (thickness): 7/8" at the nut and 15/16" at the 12th fret
String gauge: .050,.038,028,.020,.016,.012 (tuned B to B but lower tuning possible with heavier strings)
Weight: 8 lbs
Intrepid Wiring Diagram
|
