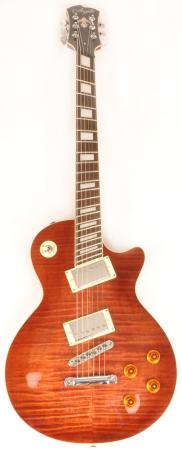

Agile AL-3010SE Multi-Scale Evaluation Sample

Evaluation Sample- Not For Sale

We are soliciting comments and suggestions for this model.

Multi-Scale AL

Grover Rotomatic tuners; Cepheus T-X multi-scale (patent pending) tune-O-matic bridge; Type V Alnico humbucker pickups; and Graph Tech Tusq nut

Adjustable truss rod

Stop-bar tailpiece transfers string vibration to the body of the guitar and produces superior sustain

Comfortable feel that will make you want to play for hours

Qty Price: $399.99
  • Details
  • Specifications
  • Customer Comments
  • Accessories
  • Solid mahogany (not a multi-ply!) arch top body
  • Bound body, neck, and headstock
  • Chrome die-cast Grover Rotomatic tuners with 18-1 turning ratio for ultra fine tuning (Model 102-18N)
  • Two Type V Alnico humbucker pickups create that warm, traditional sound (humbucker pickups help reduce hum and noise and offer superior performance by giving a thicker fuller sound than single coils; humbuckers also create a much larger magnetic field, which helps eliminate dead spots and increases overall power of the pickup)
  • Adjustable truss rod in neck to offset alterations caused by changes in humidity, temperature, or new strings
  • High voltage, brass shaft pots for reduced noise and an improved pickup selector switch
  • Two volume controls, two tone controls, and a 3-way pickup selector switch allow a wide range of expressive control
  • Cepheus T-003 wide throw tune-O-matic bridge with graphite saddles
  • Set-in mahogany neck with ebony fretboard
  • 22 jumbo frets and genuine abalone trapezoid inlays
  • 13.7" (350 mm) radius neck for fast play
  • D'addario 10-46 strings installed at the factory along with a professionally cut Graph Tech Tusq nut!
  • Individually hand filed frets for professional feel and playability
  • Stop-bar tailpiece transfers string vibration to the body of the guitar and produces superior sustain
  • Made in South Korea

    • Measurements
  • Overall length: 40 1/2"
  • Scale length: 25.0"-27"
  • Width of the neck at the nut: 1 7/8"
  • Width of the neck at the 12 fret: 2"
  • Spacing between the strings at the nut: 1/4" (overall 1 3/8")
  • Spacing between the strings at the bridge: 7/16" (2 1/4")
  • Neck taper/thickness at the 1st fret: 7/8"
  • Neck taper/thickness at the 12th fret: 1"
  • Width at the upper bout: 9 1/4"
  • Width at the lower bout: 13 5/16"
  • Body thickness at the edge: 1 15/16"
  • Weight: only 10 pounds!
  • Wiring Diagram
    • We look forward to hearing your comments.
