Now With Locking Tuners and Stainless Steel Frets! Extra wide neck for wider string spacing and ease of play.
Specially designed for the left handed player.
Neck-thu design for improved sustain and playability
Body and neck contour for extra comfort and access to higher frets.
Graph Tech NVS2 bridge with string saver saddles
Two Type V Alnico humbucker pickups for warm, tradional sound
Hard shell case included
Solid mahogany arch top body
Flame maple top
Bound body, neck, and headstock.

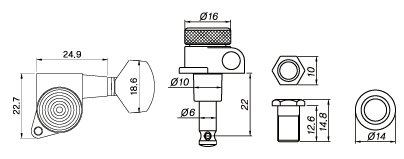

Improved Nickel plate hardware, including Nickel die-cast Cepheus Locking Tuners with 19-1 turning ratio for ultra-fine tuning
The AL-3100 comes with improved wiring, improved pots (high voltage with brass shafts for reduced noise) and an improved pickup selector switch
Two volume and two tone controls, plus a three way pickup selector switch
5 piece neck-thru (maple/walnut)neck with 13.7" (350mm) radius neck for fast play and adjustable truss rod
Ebony fretboard with 22 Jumbo Stainless Steel Frets and Mother of Pearl Trapezodial inlays!
The AL-3000 features D'addario strings installed at the factory and a professionally installed Graph Tech nut
Individually hand filed frets for professional feel and playability
Measurements
Overall length: 40"
Scale length: 24 3/4"
Width of the neck at the nut : 1 3/4" (44mm);
Width of the neck at the 21st fret: 2 1/4" (57mm)
String Spacing at the nut: 5/16" (8.5mm) at the bridge 3/8" (10mm).
Neck taper/thickness at the 1st fret: 7/8" (21.5 mm)
Neck taper /thickness at the 12th fret: 15/16" (23.5mm)
Width at the upper bout 9 1/4" Lower bount: 13 5/16"
Body thickness: 1 15/16" at edge
Weight: only 10 lbs!
How to pick the right AL model: AL Specification Comparison
Set Up Tips
Wiring Diagram
Video Overview
VIDEO
(note video shows older model with Grover tuners, current model ships with Cepheus Locking Tuners)
