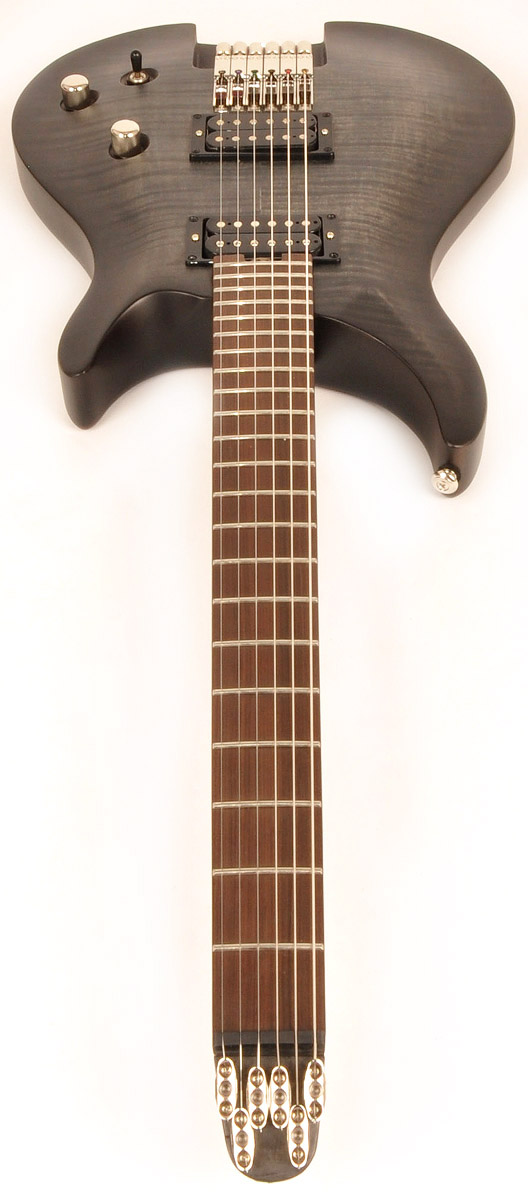

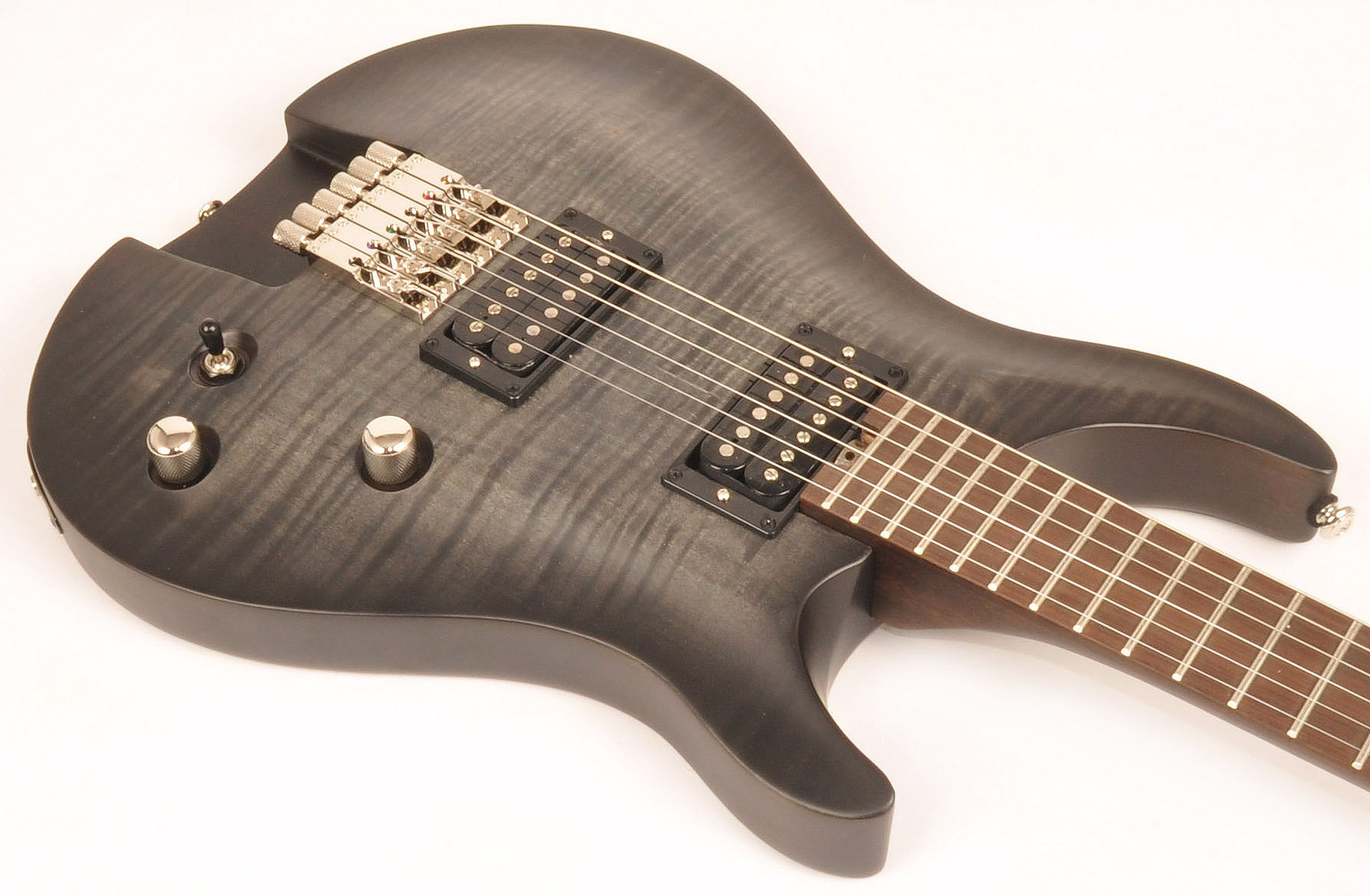

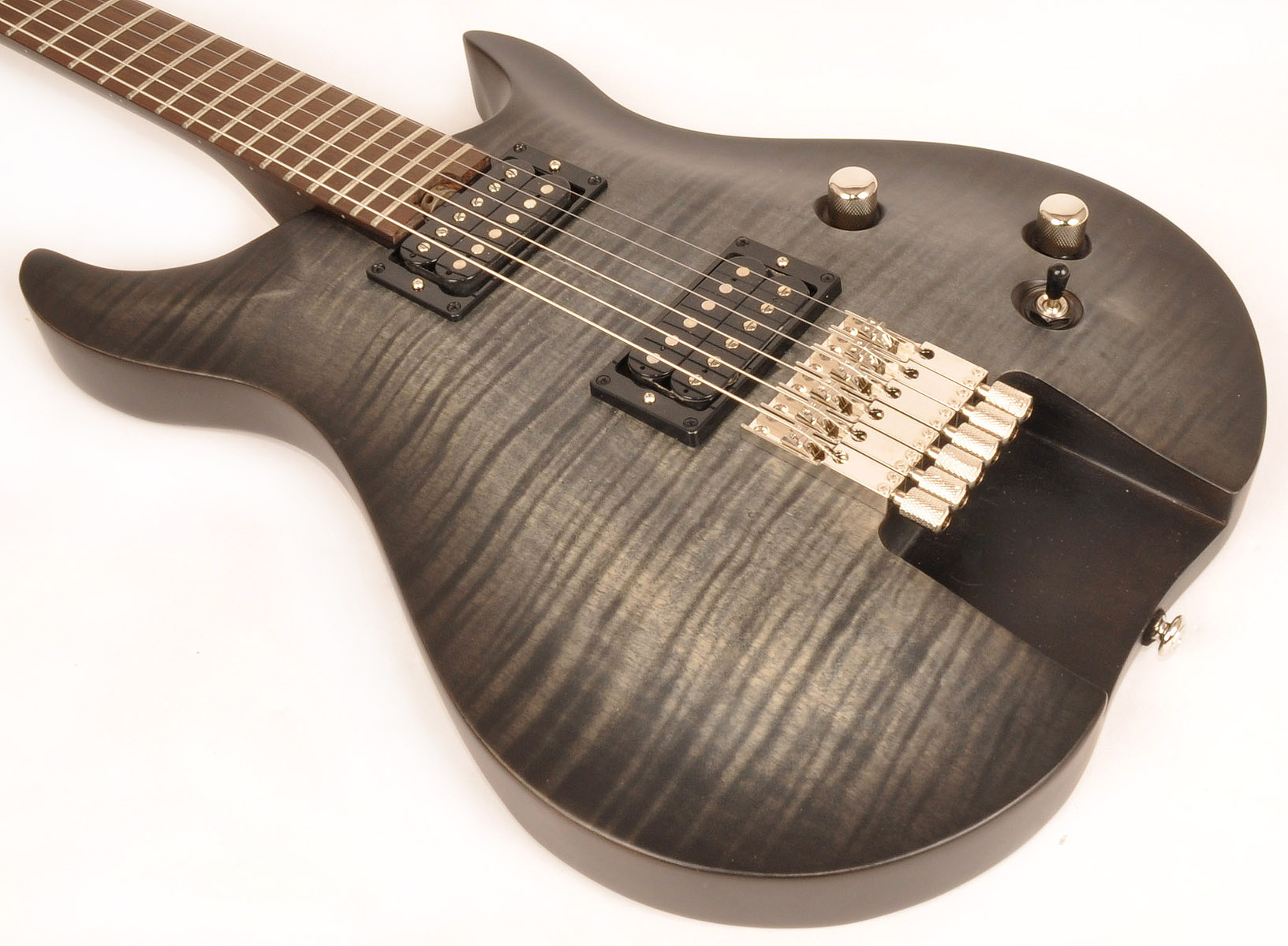

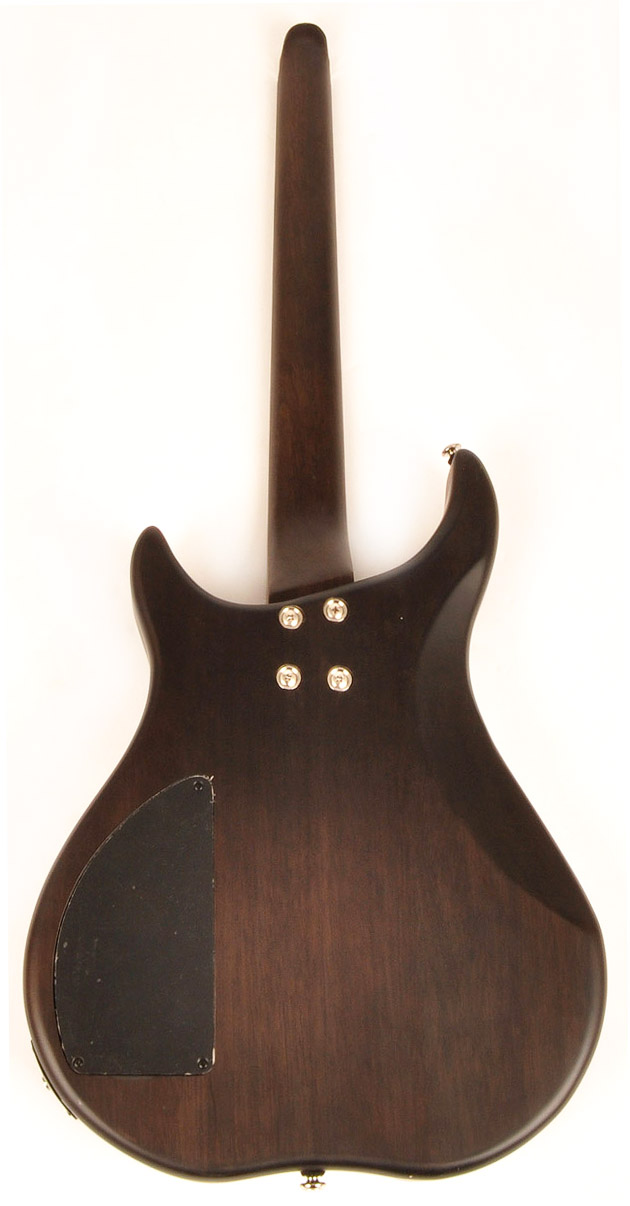

Headless Guitar Prototype!
We are soliciting comments on this proto type model.
This incredible guitar features a highly figured burl ash top on a solid mahogany archtop body
Unique headless design - does not require double ball end strings
Wide and low dual cutaways along with a contoured top to allow access to the highest frets
Two humbucker alnico pickups offer superior performance by giving a thick, full sound and reducing hum and noise
Humbuckers also create a much larger magnetic field which helps eliminate dead spots and increases the overall power of the pickups
25 1/2" scale, set-in, maple neck with adjustable truss rod and rosewood fretboard
The 3-way pickup selector switch and volume and tone controls are recessed into the body
Smooth custom Cepheus bridge system
Overall length: 30 3/4"
Scale length: 25 1/2"
Width at upper bout: 9 1/2"
Width at the lower bout: 12 1/4"
Width of body at the edge: 1 3/4"
Width of the body at the center: 2 1/8"
Width of the neck at the nut: 1 3/4"
Width of the neck at the 12th fret: 2 1/16"
String spacing at the nut: 1/4" (overall 1 7/16"
String spacing at the bridge 7/16" (2 1/8" overall)
Thickness of the neck at the nut: 3/4"
Thickness of the neck at the 12th fret: 7/8"
Neck radius: 13 3/4" (350 mm)
Weight: only 6 1/2 pounds
