One of a Kind Custom Model

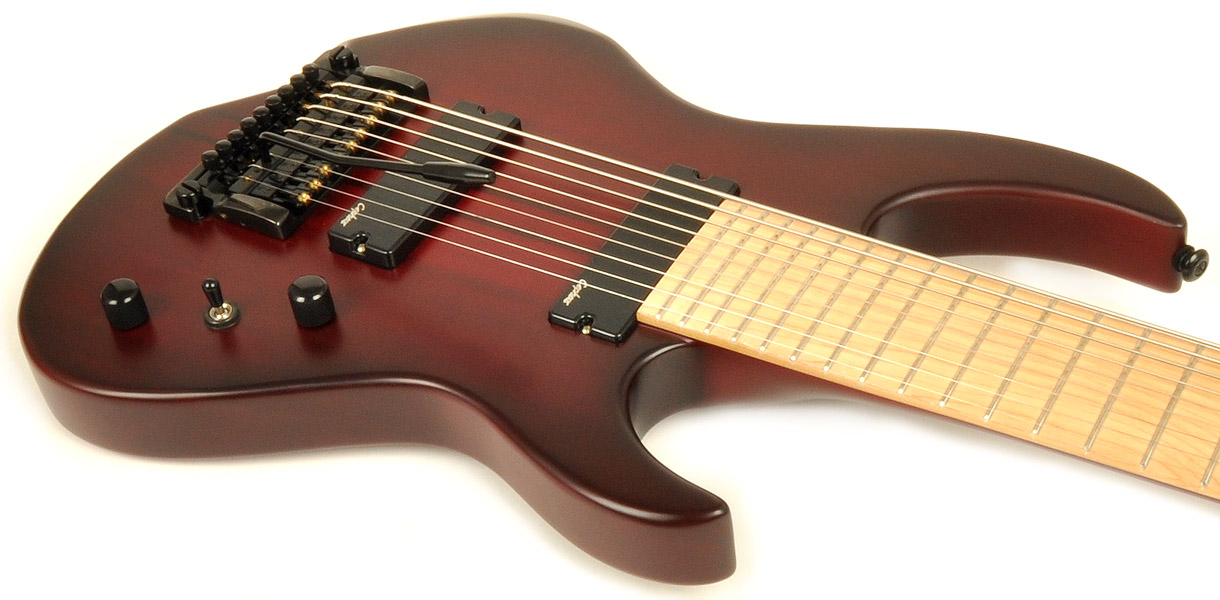

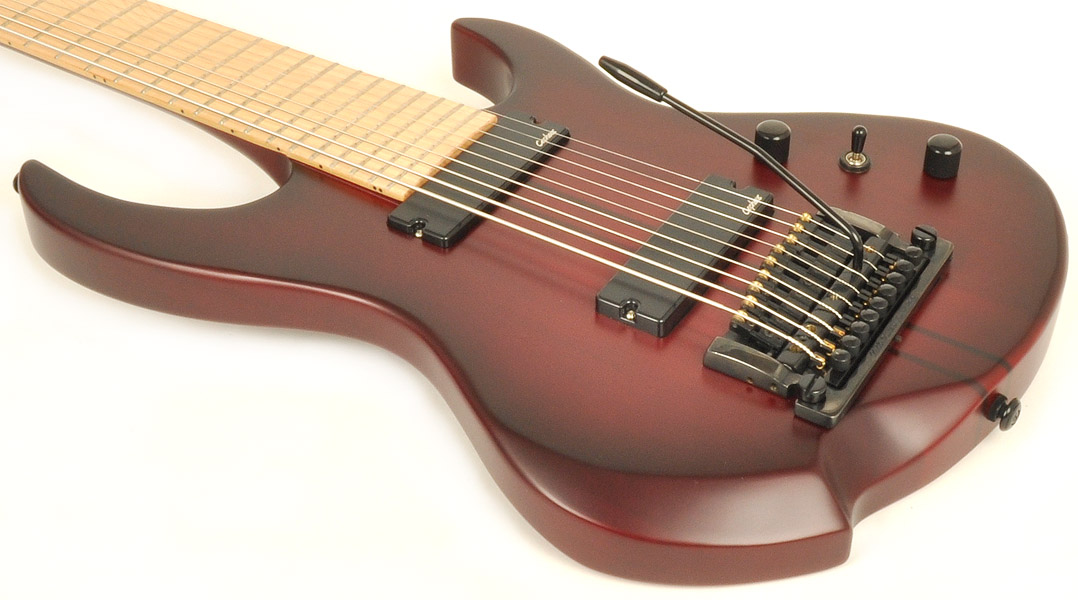

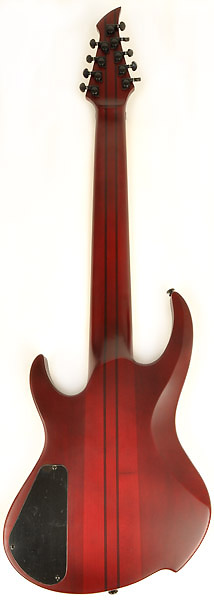

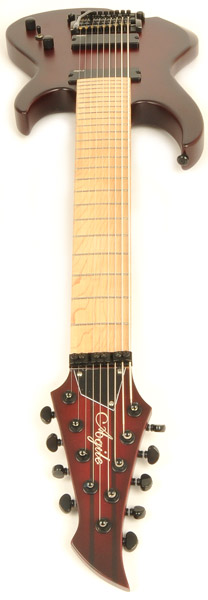

Photos shown are of the actual guitar you will receive
Custom, designed in cooperation with Gary Kahler, Kahler 9 String Pro Tremolo
Swamp ash body
Maple neck and fretboard
5 piece maple/walnut neck-thru body design
Headstock matches body
No inlays on the neck - position markers on the side of the neck only
24 jumbo frets
Dual Cepheus active pickups with master volume and tone - routing and wiring is compatible with EMG 909s
String through body
Die-cast Grover sealed tuners model GH305-18 with 18-1 ratio for fine tuning
Graphite nut
Satin polyurethane finish
Measurements
Scale length: 30
Width of the neck at the nut: 2 1/2
Width of the neck at the 12th fret: 3 1/8"
Width of the neck at the 24th fret: 3 3/8"
Neck profile (thickness) at the nut: 7/8"
Neck profile (thickness) at the 12th fret: 15/16"
Radius: 15"
String gauges: .009, .012, .015, .022, .030, .040, .054, .074 .090
Intrepid Wiring Diagram
For proper intonation set low string to F# below regular E, followed by standard tuning.
|
