This B Stock item has a 3" crack starting at the tone knob and extends past the lower side of the three way switch. The crack is stable and has been sealed with cyanoacrylate. Finish is slightly scuffed around that area. Included hard shell case has a small 1" rip on the inner pad where the upper strap button goes.

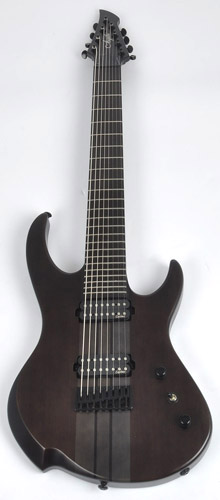

Body and matching headstock are crafted with mahogany
Rare ebony fingerboard with 15 radius - 2 Ό wide at the nut (it's very hard to find high quality ebony this wide at an affordable price, but we did it!)
5 piece maple/walnut neck-through body design
No inlays on the neck - position markers on the side of the neck only
24 jumbo frets
Cepheus passive 8 pickup with master volume - cavity has been routed large enough to accommodate additional electronics
Cepheus high mass extended range bridge
String through body
Die-cast Grover sealed tuners (model GH305-18) with 18-1 ratio for fine tuning
Graphite nut
Satin polyurethane finish
Measurements
Scale length: 30
Width of neck at the nut: 2 1/4"
Neck profile (thickness)at the nut: 7/8"
Neck profile at the 12th fret: 15/16"
Radius: 15
String gauges: .009, .012, .015, .022, .030, .040, .054, .074
Intrepid Wiring Diagram
For proper intonation set low string to F#, then B, E, A, D, G, B, and E.
|
