Warning! Production On This Batch of Customs is Nearly Sold Out! Order Now!
The target shipping date for this custom guitar is April 2013. To have a guitar built special for you with the specific characteristics that you choose, you will need to make 2 separate payments. The first payment will be a deposit. To determine the cost of the deposit for the guitar you want to create, simply select the features you want. Then hit the button “Add to Cart”. Your shopping cart will pop up on your computer screen. Next enter your zip code to calculate the shipping charge. The price of your deposit for your instrument, including shipping, will be shown. This is the amount of the deposit you pay when you place your order. When your custom guitar has been created and is ready to ship, you will be notified. At that time you would make a final payment of exactly $275 (regardless of what custom options you choose), and your guitar that you designed will be on its way to you!
Standard Features:
Solid mahogany (not a multi-ply!) arch top body.
Free EGC-300LP case included.
Grover tuners with 18-1 turning ratio for ultra fine tuning (Model 102-18N).
High voltage pots with brass shafts (for reduced noise).
Two volume and two tone controls, plus an improved three way pickup selector switch.
D'addario 10-46 strings are on the 6 string models. Labella 8-56 strings are on 7 string models.
Individually hand filed frets for professional feel and playability!
Graph Tec TUSQ nut installed on non tremolo models.
Two Type V Alnico humbucker pickups for warm, traditional sound
Body thickness: 2" at edge.
Width at the widest point: 13".
Custom Features:

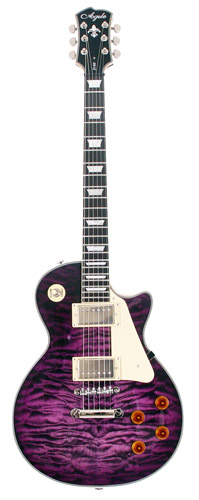

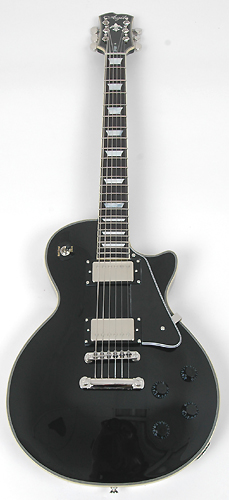

Choice of Color: 2 Tones Plain Top, 2 Tones Flame Top, Amber Burst Flame, Black, Black Flame, Black Quilt, Blue Flame, Camo, Cherry Sunburst Flame, Gold, Heritage Sunburst Flame, Purple Flame,

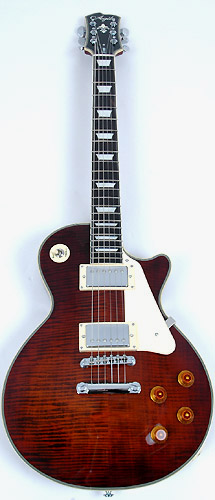

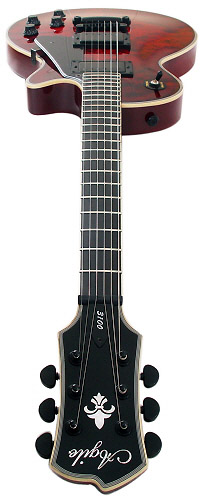

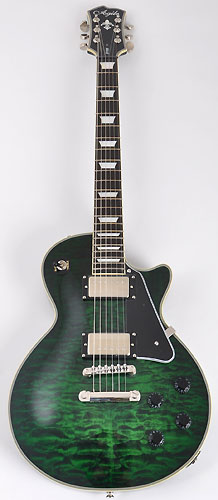

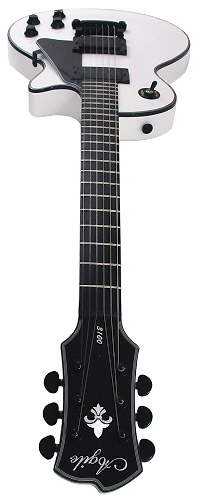

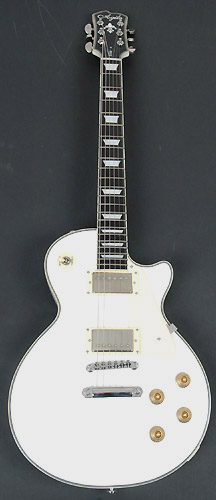

Rootbeer Flame, Silverburst, Tiger Eye Flame, Tobacco Burst Flame, Tobacco Plain, Tribal Blue, Tribal Green, Tribal Purple, Tribal Red, White, Wine Red, Wine Red Flame.
Choice of 6 string or 7 string. 6 String models ship with covered pickups. The cover matches the hardware (nickel, chrome, black etc). 7 String models ship with and Agile exposed coil pickup
Choice of set neck (when standard body is chosen) or Neck-Thru (when 3200 body is chosen)
Choice of either standard solid 3 piece mahogany body, 3 piece mahogany contoured body, or 3 piece chambered mahogany body. The standard and contoured body may also be ordered with a 3/4" maple top. The chambered body is lighter weight, about 8 lbs, compared to the solid body which is about 10 lbs. The solid body has a bit more sustain. The contoured body has a special heal and body contour for extra comfort (including special tummy cut on the back)! In addition to providing extra comfort, the special contour allows for better access to higher frets. The 3/4" maple top brightens up the sound, where as the solid mahogany models are "darker" or more mellow in sound.
Choice of Neck: (6 String Only) Standard, Slim, or Wide. For the Standard Profile, the width at the nut is 1 1/16" and the width at the 21st fret is 2 3/16". The thickness of the neck for the Standard Profile is 21.5 mm at the first fret and 23.5mm at the 12th fret. For the Slim Profile, the width at the nut is 1 11/16" and the width at the 21st fret is 2 3/16". The thickness of the neck for the Slim Profile is 17 mm at the first fret and 21 mm at the 12th fret. For the Wide Profile, the width at the nut is 1 3/4" and the width at the 21st fret is 2 1/4". The thickness of the neck for the Wide Profile is 21.5 mm at the first fret and 23.5mm at the 12th fret.
Choice of Mother of Pearl trapezodial inlays, Mother of Pearl block inlays, Abalone trapezoidal inlays, black block inlays, or no inlays at all.
Choice of Ebony or Maple fretboard.
Choice of Hardware: Nickel, Black Nickel, Chrome, Gold, or Black. All ship with Graph Tech NVS2 bridge with string saver saddles except Black hardware models which use Tone Pros (model TPFP-l).
Choice of color for knob and "plastics", which include the switch ring, switch tip, pickup ring, jack plate, and back plates. (In the selection menu of "plastics", the knob color is listed first, and the color of the other items is listed second.)
Choice of Pickguard. Note that pickguard is not available for models with Floyd Rose.
Tune o Matic with stop tail, or Floyd Rose Special FRT S-1000 bridge.
Choice of Scale Length: 24 3/4" or 27". (The 24 3/4" scale guitar with the Tune o Matic bridge has 22 frets. The 24 3/4" scale guitar with the Floyd Rose bridge has 24 frets. The 27" scale guitars with either bridge have 24 frets.)
Choice of binding: Triple cream binding option will have triple binding on the body and headstock, single binding on the neck. You can also select black binding or no binding.
Right handed or left handed.
Wiring Diagram
|
Your final shipping costs will depend on your location and the items you order. To determine your total shipping cost, please click on the “add to shopping cart” button, and enter your address information. You will have the opportunity to cancel your order after you are quoted a shipping price.
......................................................Black Binding.....................................................Cream Binding..............Countoured Back and Heal
........Union Jack.................. Black Jack
$275.00
|
|
