Because 8 Is NOT Enough....

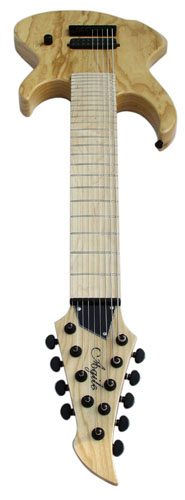

9 String Guitar with Ash Body
1 piece bolt on neck
Cepheus 9 passive pickup with master volume. Cavity has been routed large enough to accommodate additional electronics
No inlays on the neck. Position markers on the side of the neck only
24 Jumbo Frets
Maple Neck with 15 radius. Width 2 1/2 at the nut 3 1/8" at the 12th fret and 3 3/8" at the 24th fret
String Spacing at the bridge: 7/16"
Neck profile (thickness): 7/8" at the nut 15/16" at the 12th fret
Scale Length: 28.625 Overall length: 43" Weight: Approx. 9 lbs
String through body
Die-cast Grover sealed tuners model GH305-18 with 18-1 ratio for fine tuning
Satin Polyurethane Finish
String gauges: .009, .012, .015, .022, .030, .040, .054, .074 .090
Guitar is setup to tune as a bass on the lower 2 strings (E, A). Then with standard 7 string guitar turning on the upper 6 strings (B, E, A, D, G, B, E). However a variety of tunings is possible.
Intrepid Wiring Diagram
For proper intonation set low string to F# below regular E. Then normal tuning up from there.
