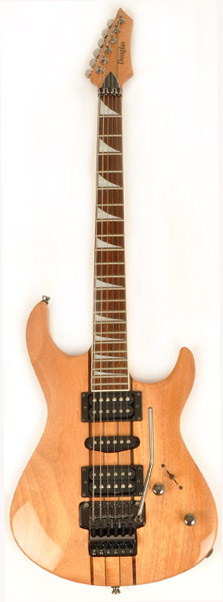

Douglas Hadron 627 Floyd NA Baritone Scale

Douglas Hadron 627 Floyd NA

Power and performance in an awesome neck-thru design

  • 27" scale length increases string tension, or allows for lower tunings (guitar ships setup E to E)

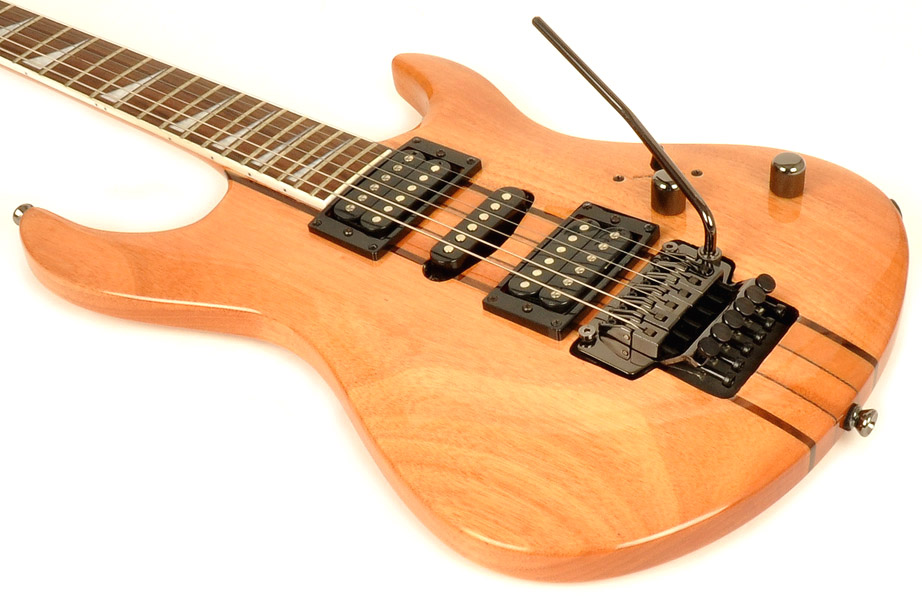

  • 2 powerful humbucker pickups and one single coil give a wide variety of sounds
  • 22 fret, 3 piece mahogany, neck-thru neck lets you hit those elusive high notes solos
  • Dual cutaway, solid Mahogany body is contoured for comfortable play
  • Floyd Rose double locking bridge

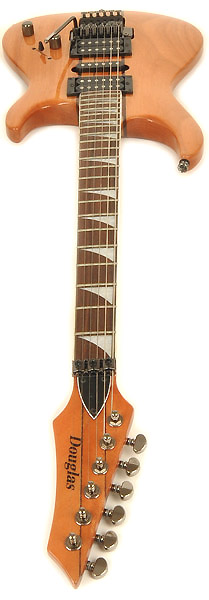

  • Bound rosewood fretboard and adjustable truss rod with shark tooth inlays
  • 5-way pickup selector switch, one volume control, and one tone control help tailor your individual sound
  • All smokey chrome hardware including die cast smokey chrome Wilkenson tuners gives this guitar a distinctive look
  • Measurements

  • Overall length, including the strap button: 41 1/2"
  • Scale length: 27"
  • Width at the widest point: 12"
  • Body thickness at edge: 1 5/8"
  • Width of the neck at the nut: 1 11/16"
  • Width of the neck at the 22nd fret: 2 3/16"
  • String spacing at the nut: 1 3/8"
  • String spacing at the bridge: 2 1/8"
  • Neck profile (thickness) at the first fret: 13/16"
  • Neck profile (thickness)at the 12th fret: 7/8"
  • Ships with 10-46 gauge strings.
  • Weight: only 7 pounds!
  • Wiring Diagram


  • Your final shipping costs will depend on your location and the items you order. To determine your total shipping cost, please click on the "add to shopping cart" button, and enter your address information. You will have the opportunity to cancel your order after you are quoted a shipping price.

    $199.99
